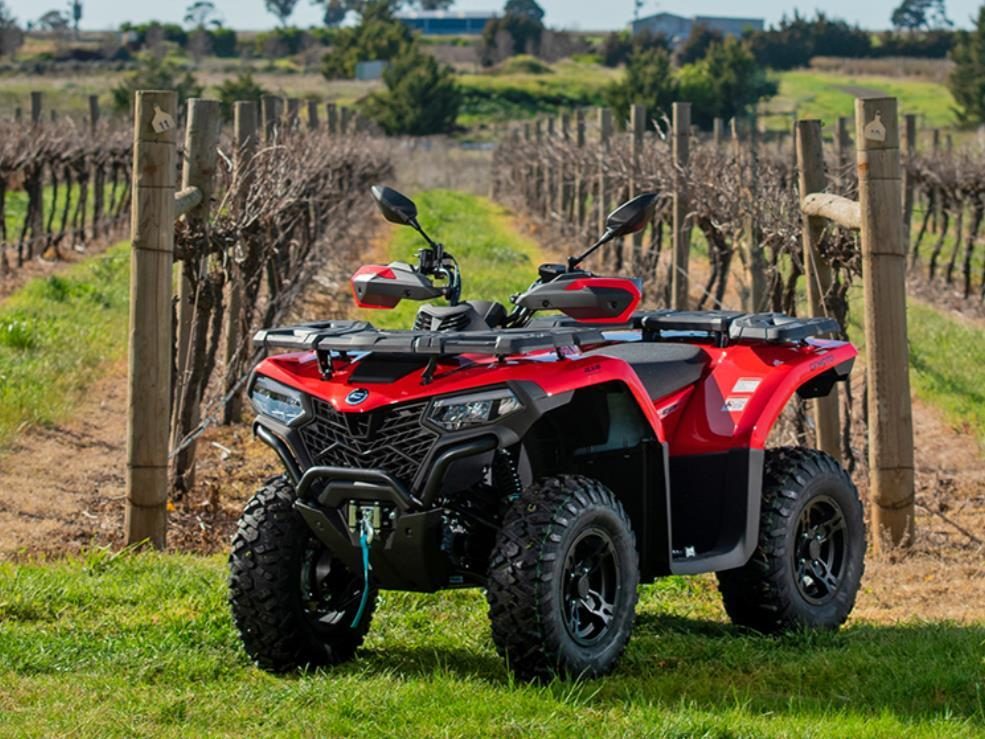

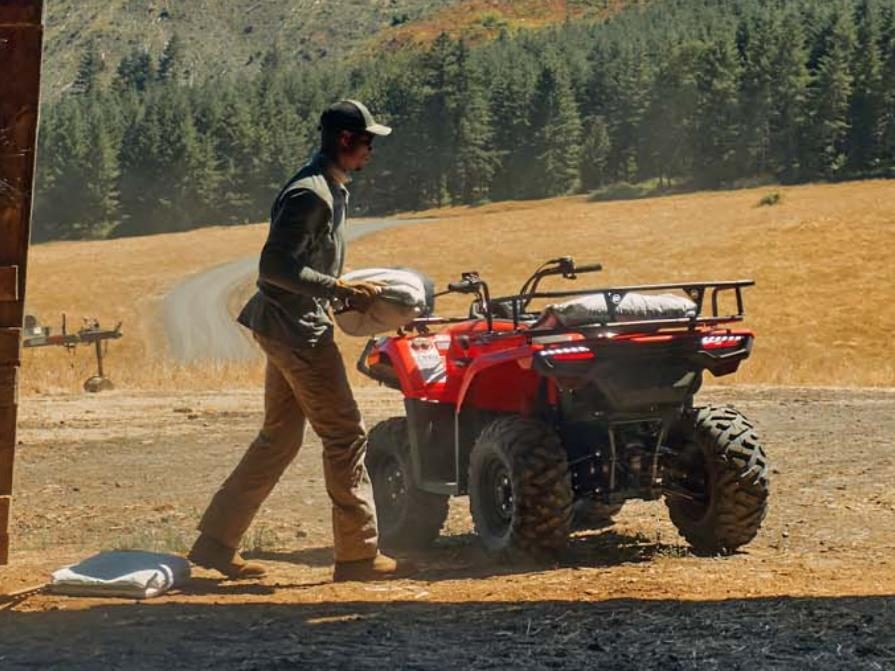

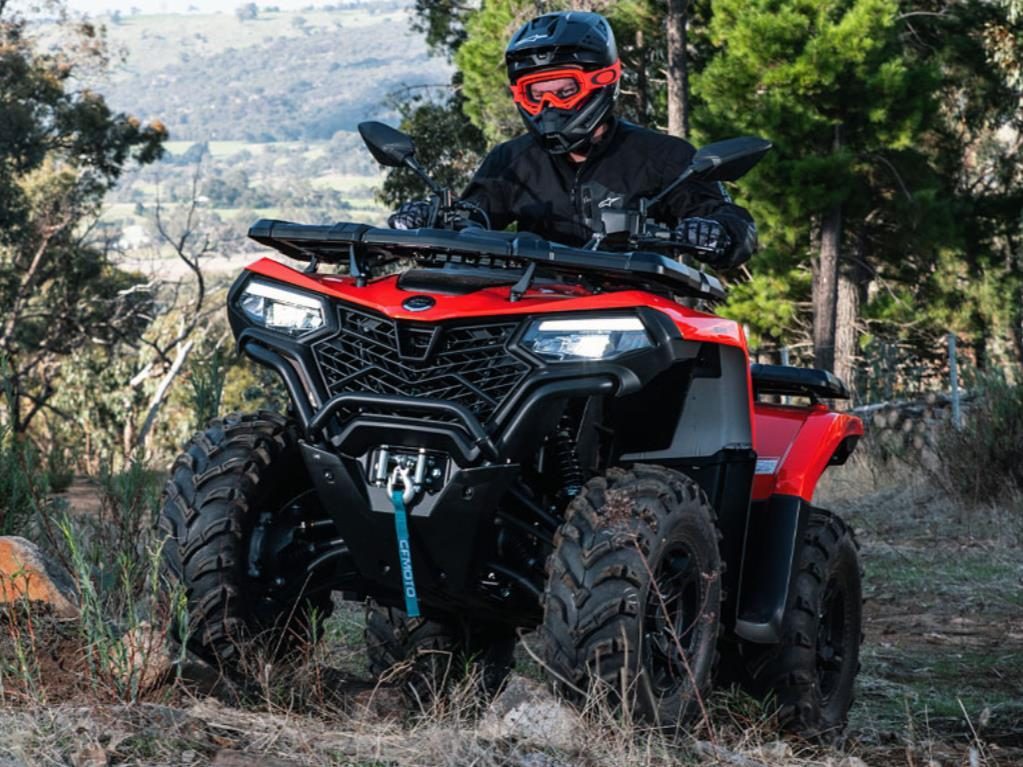

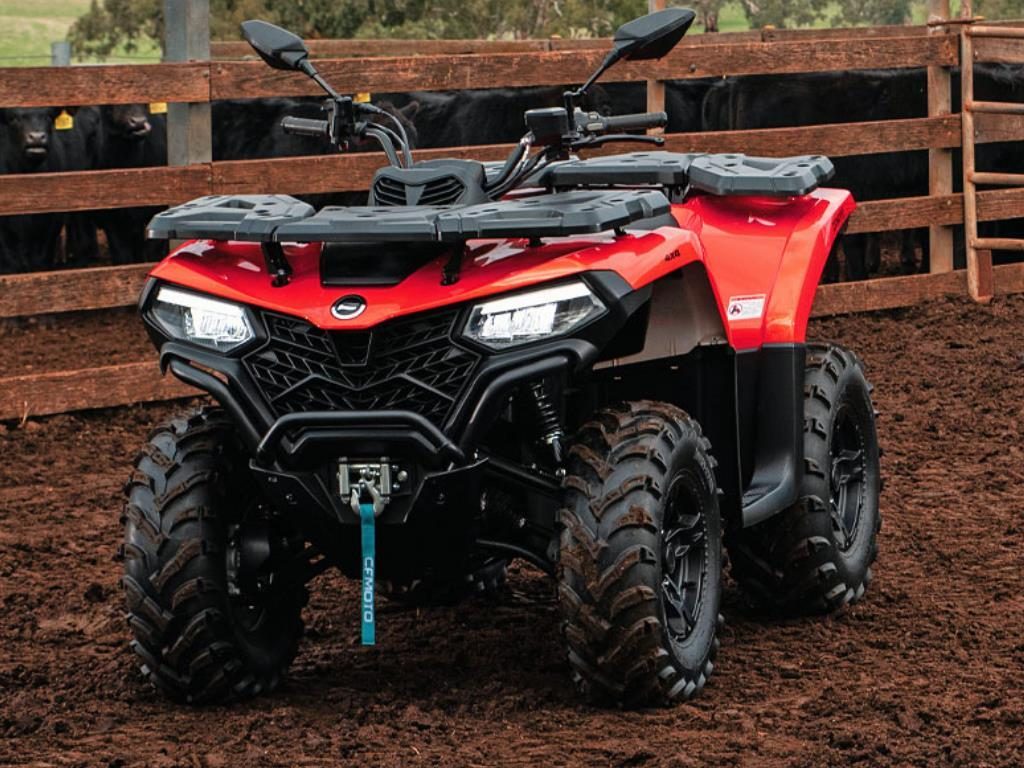

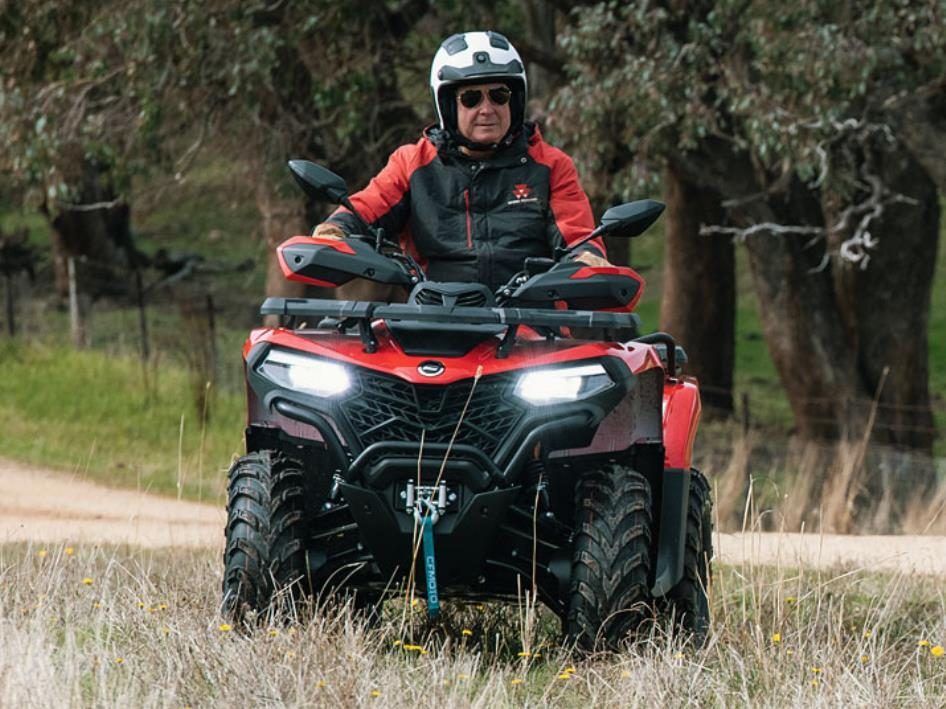

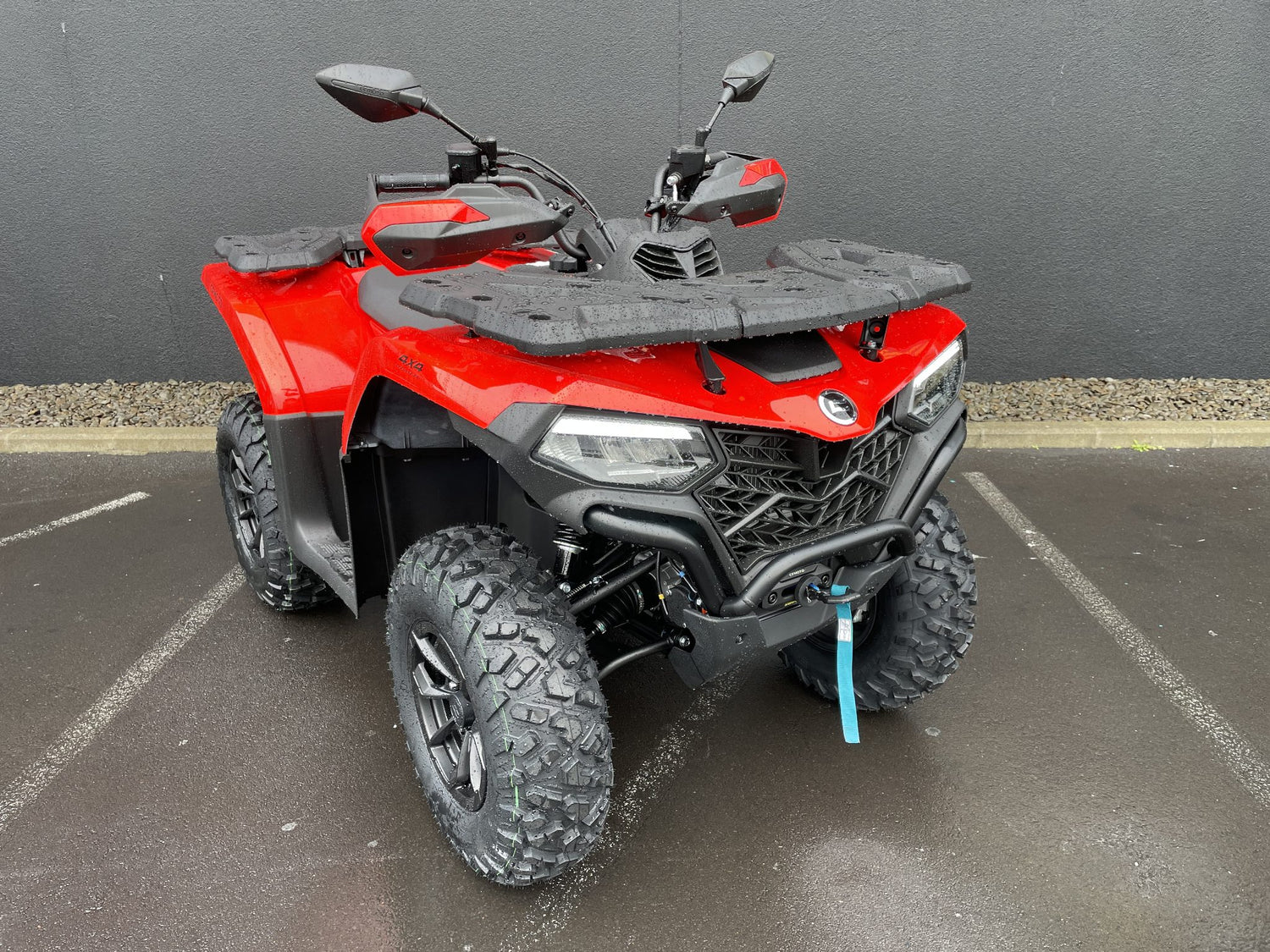

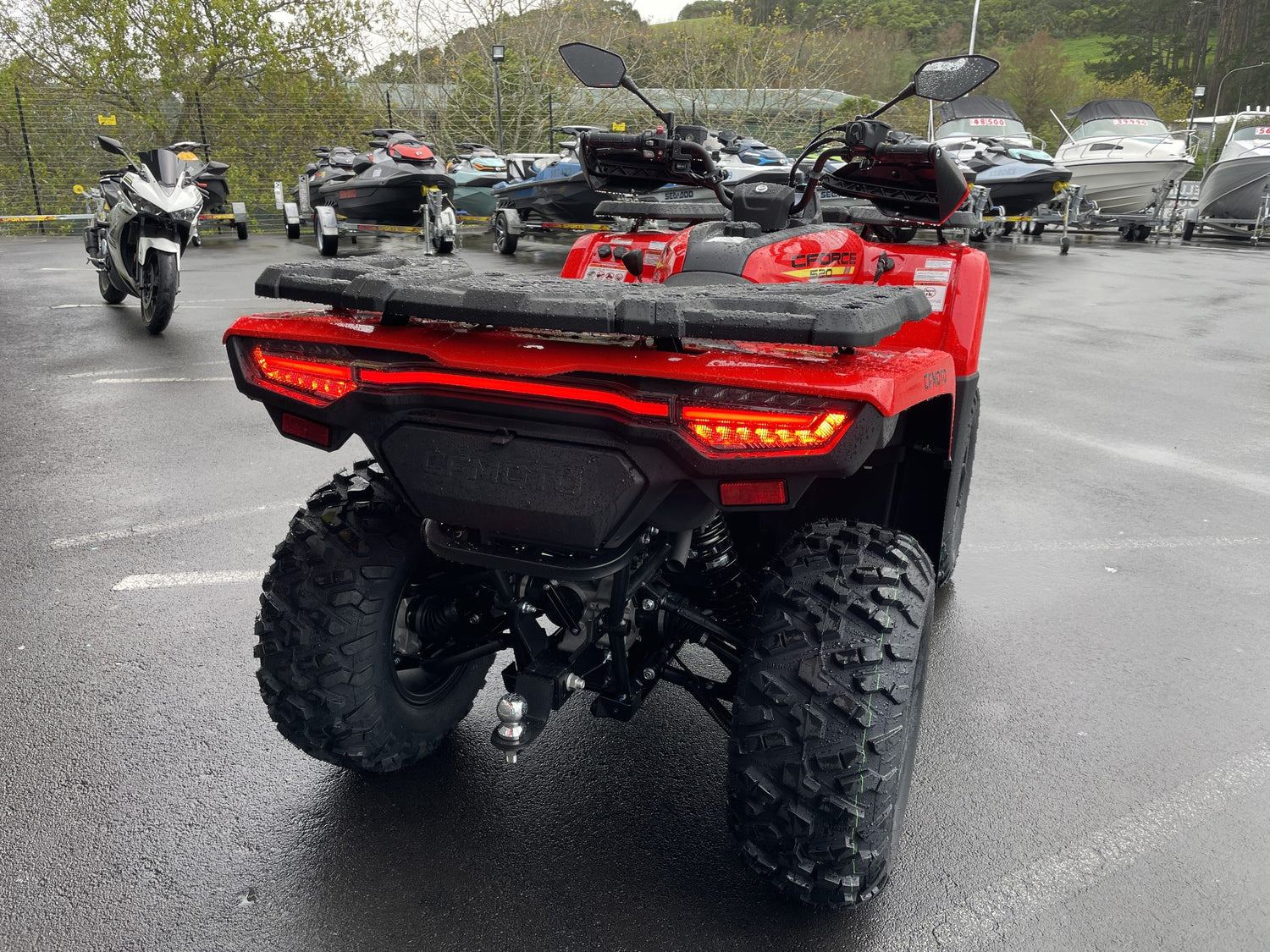

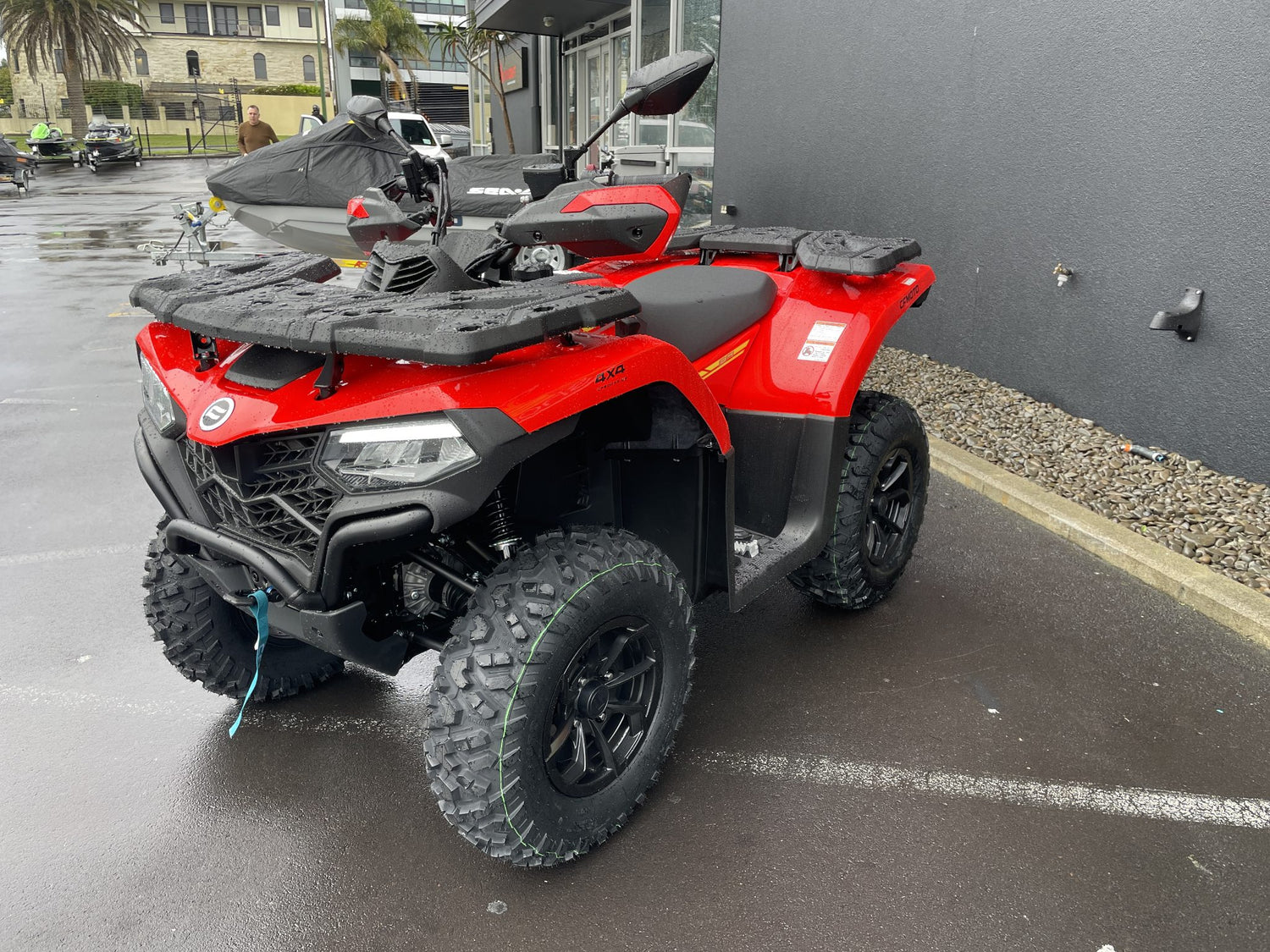

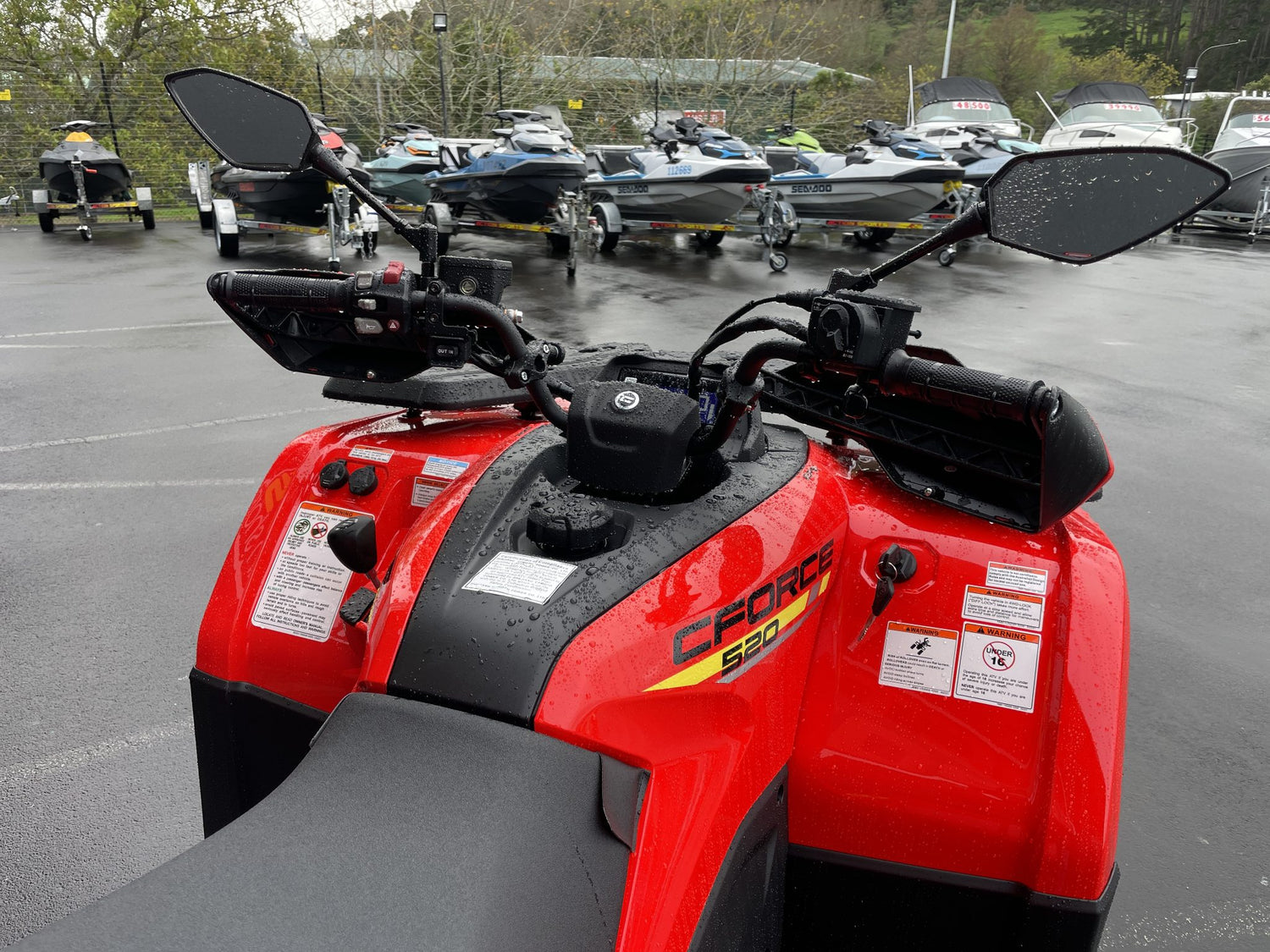

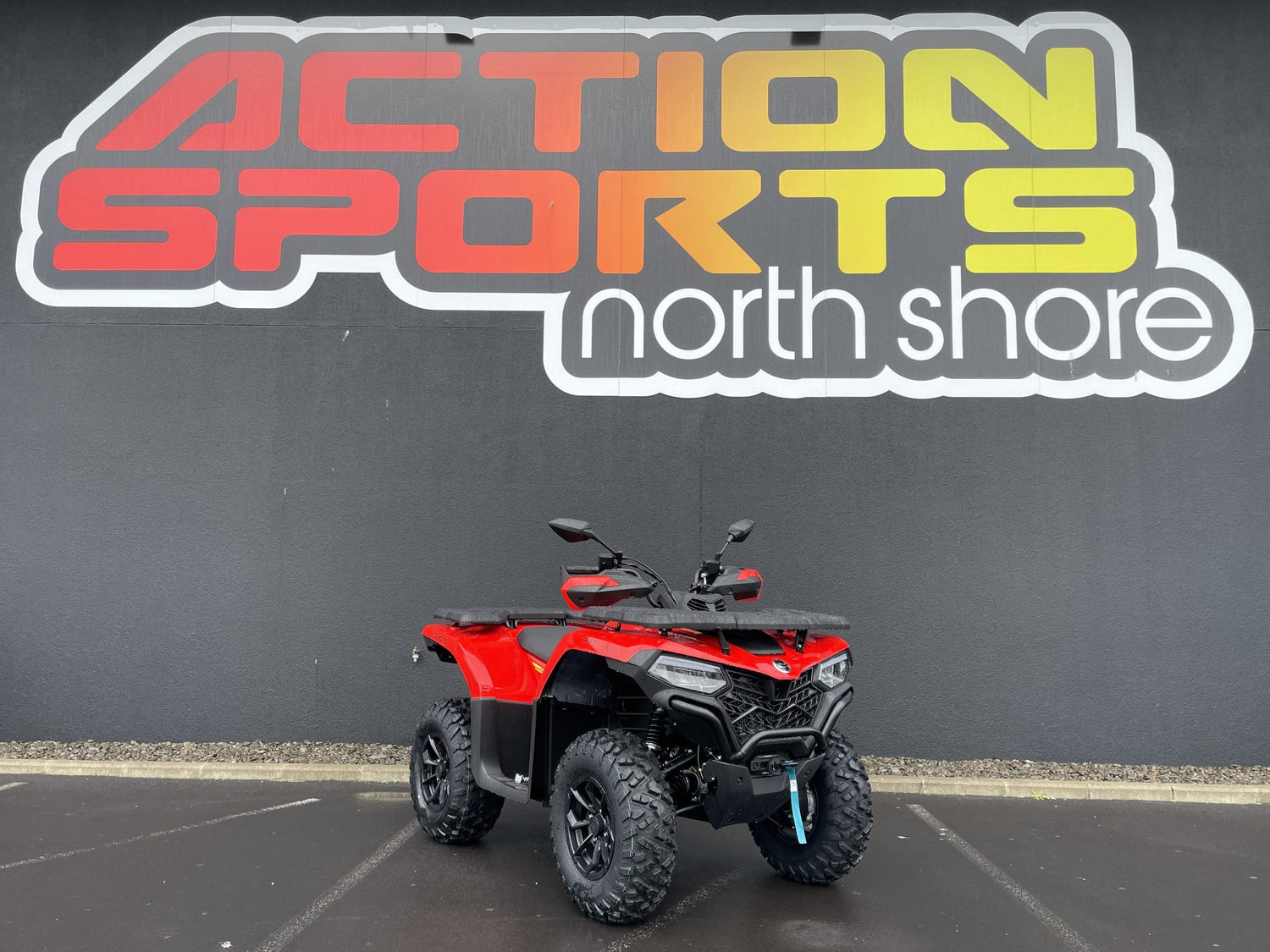

CFMOTO - CFORCE 520 - EPS - 2025

With refinements across the board, the new-generation CFORCE 520 EPS is not only stronger and lighter but has less vibration, a tighter turning circle, is more comfortable and has a smorgasbord of user-friendly attributes such as electronic power steering.
The CFORCE 520s work-ready attitude starts with the 28.3kW (38hp) 495cc, fuel-injected, four-stroke single-cylinder engine perfect for the farm with 2WD/4WD and a locking front differential. Other premium features: Force Red livery, alloy wheels, handguards, LED lights, five-inch LCD dash with Bluetooth connectivity, 2500lb winch, plastic racks and 25-inch tyres.

ENGINE & TRANSMISSION
Engine type: Four-stroke single-cylinder
Displacement: 495cc
Maximum power: 38hp (28.3kW) at 7,000rpm
Maximum torque: 39Nm at 5,750rpm
Fuel system: Bosch EFI
Transmission: CVT
Drive: H-L-N-R-Park
4WD: 2WD/4WD with locking front differential
Rear differential: Fixed
Steering: Power

SUSPENSION & BRAKES
Suspension: Double A-Arm, independent
Brakes: Hydraulic disc brakes

WHEELS & TYRES
Wheels: 12-inch alloy
Tyres: 25-inch 6-ply CST

DIMENSIONS
L x W x H: 2046 x 1125 x 1162mm
Wheelbase: 1260mm
Ground clearance: 262mm
Wet weight: 351kg

LOAD
Towing capacity: 612kg
Carrying capacity: 30kg front/60kg rear
Payload capacity: 240kg
Person: One
Fuel capacity: 17lt

HIGHLIGHTS
Power steering: Yes
Alloy wheels: Yes
25 inch tyres: Yes
Premium carrier racks: Yes
LED headlights: Yes

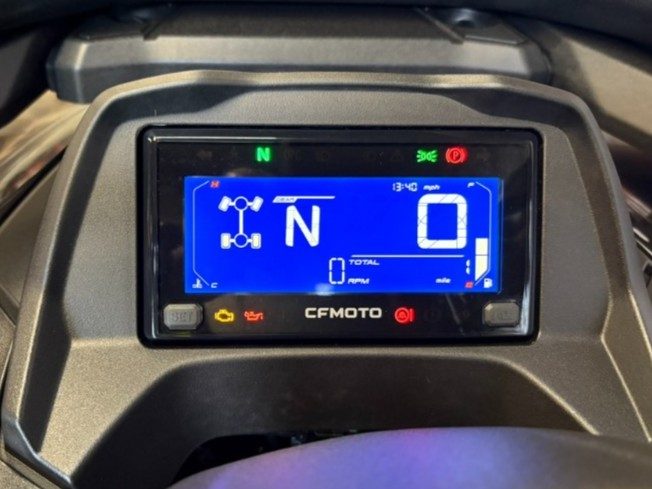

5-inch LCD display: Yes
Handguards: Yes

FEATURES
Colour: Force Red
Warranty: Two years
Winch: 2500lb
Tow pack, horn, lights and mirrors: Yes
