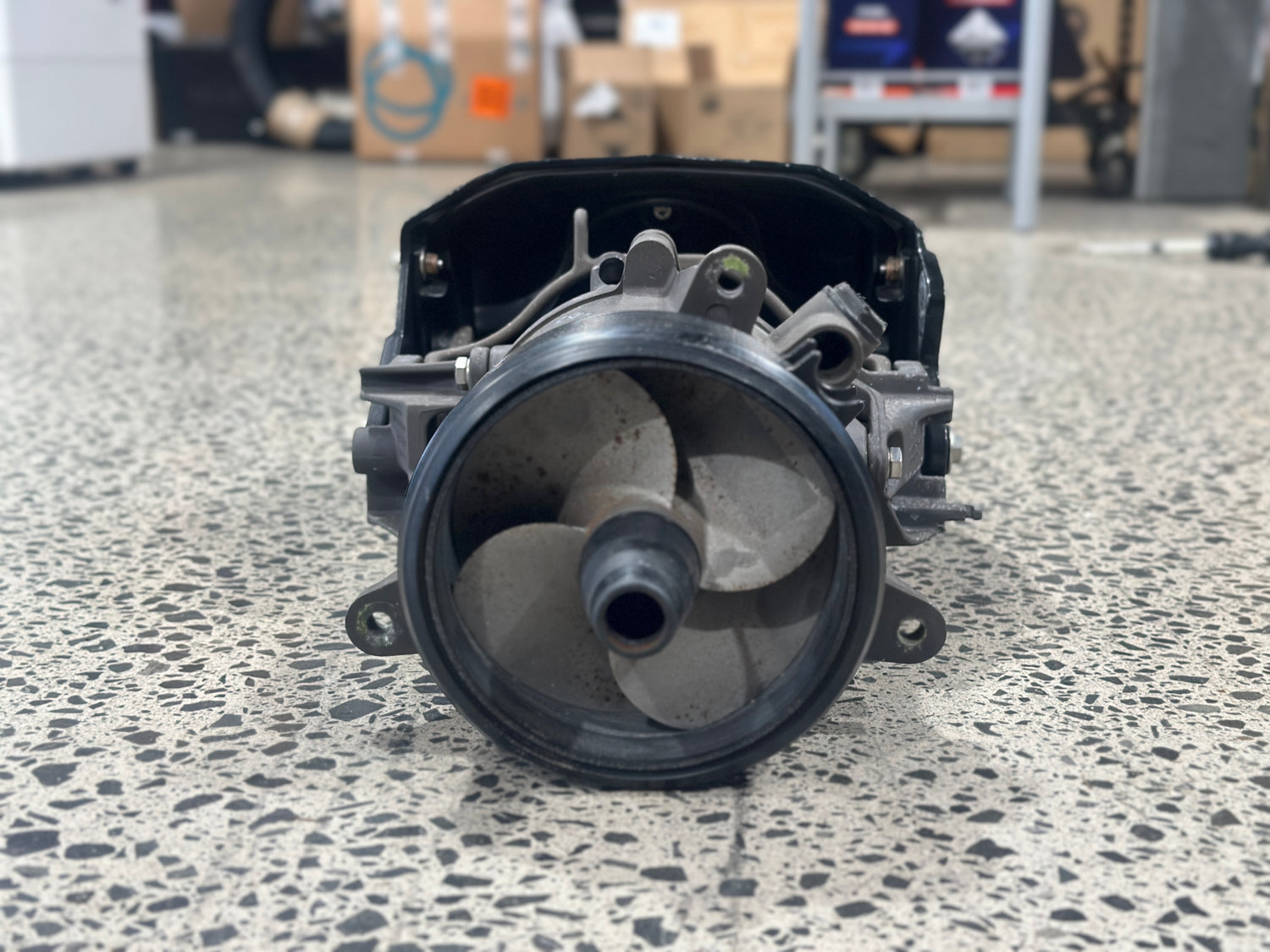

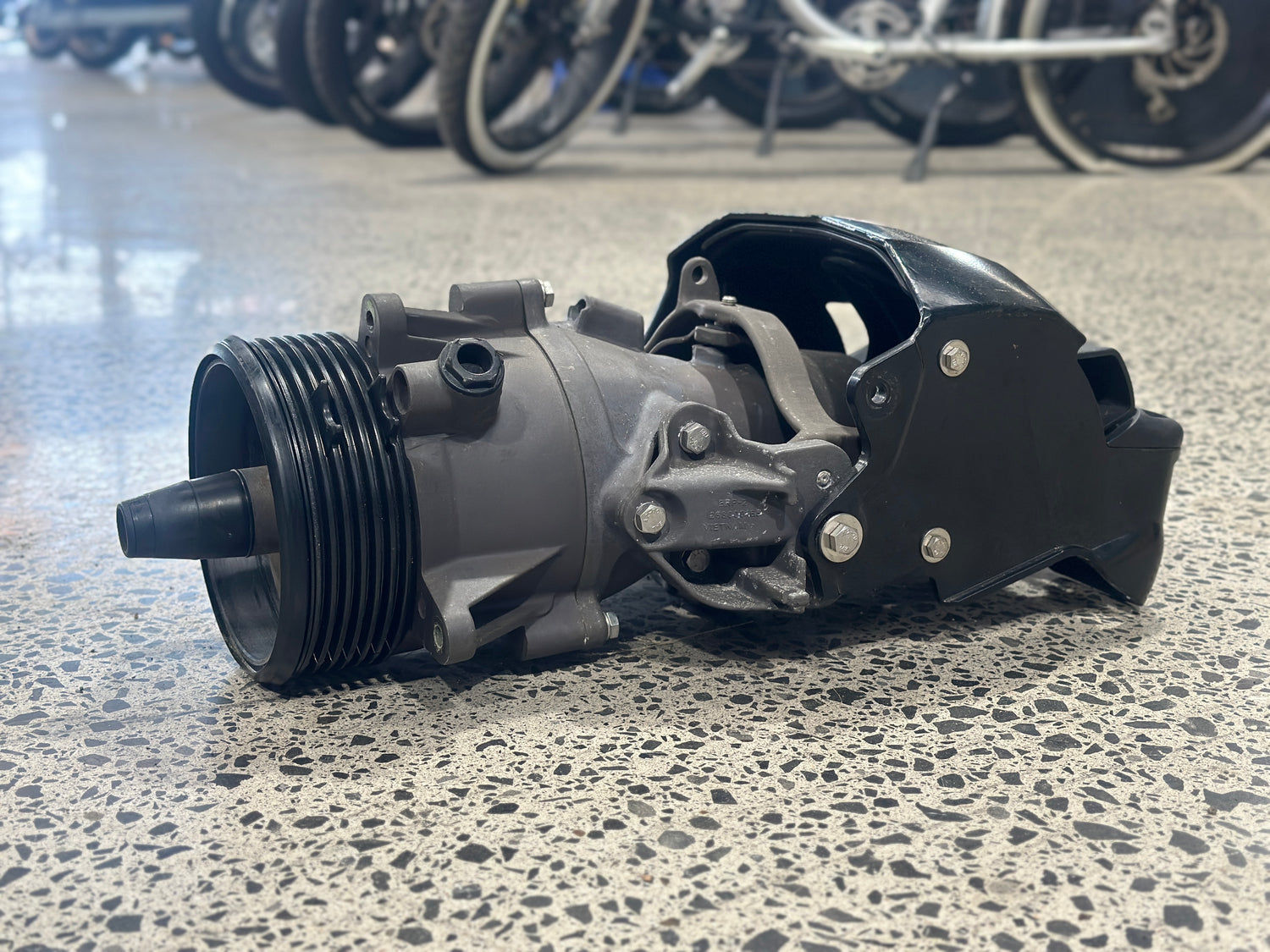

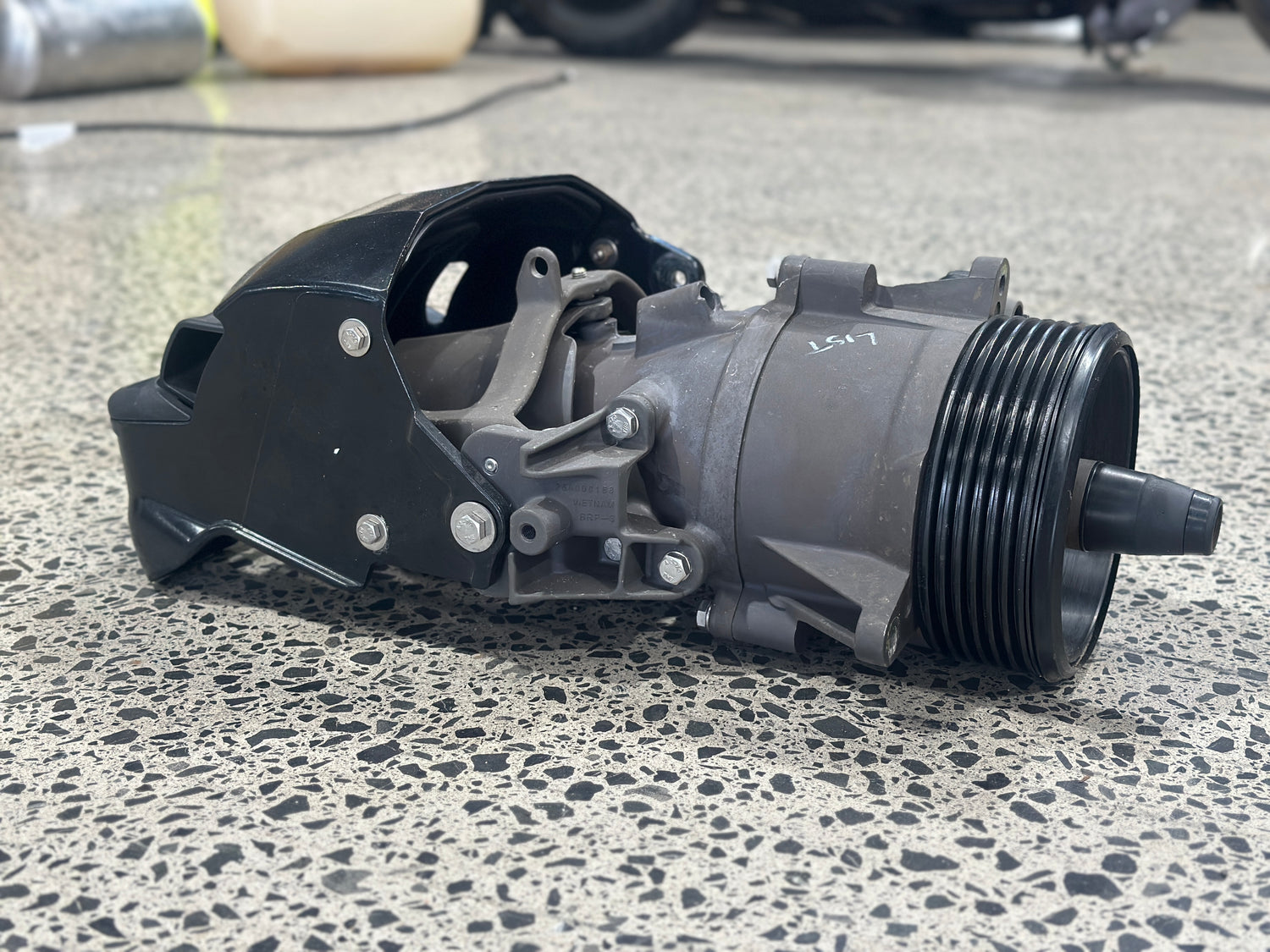

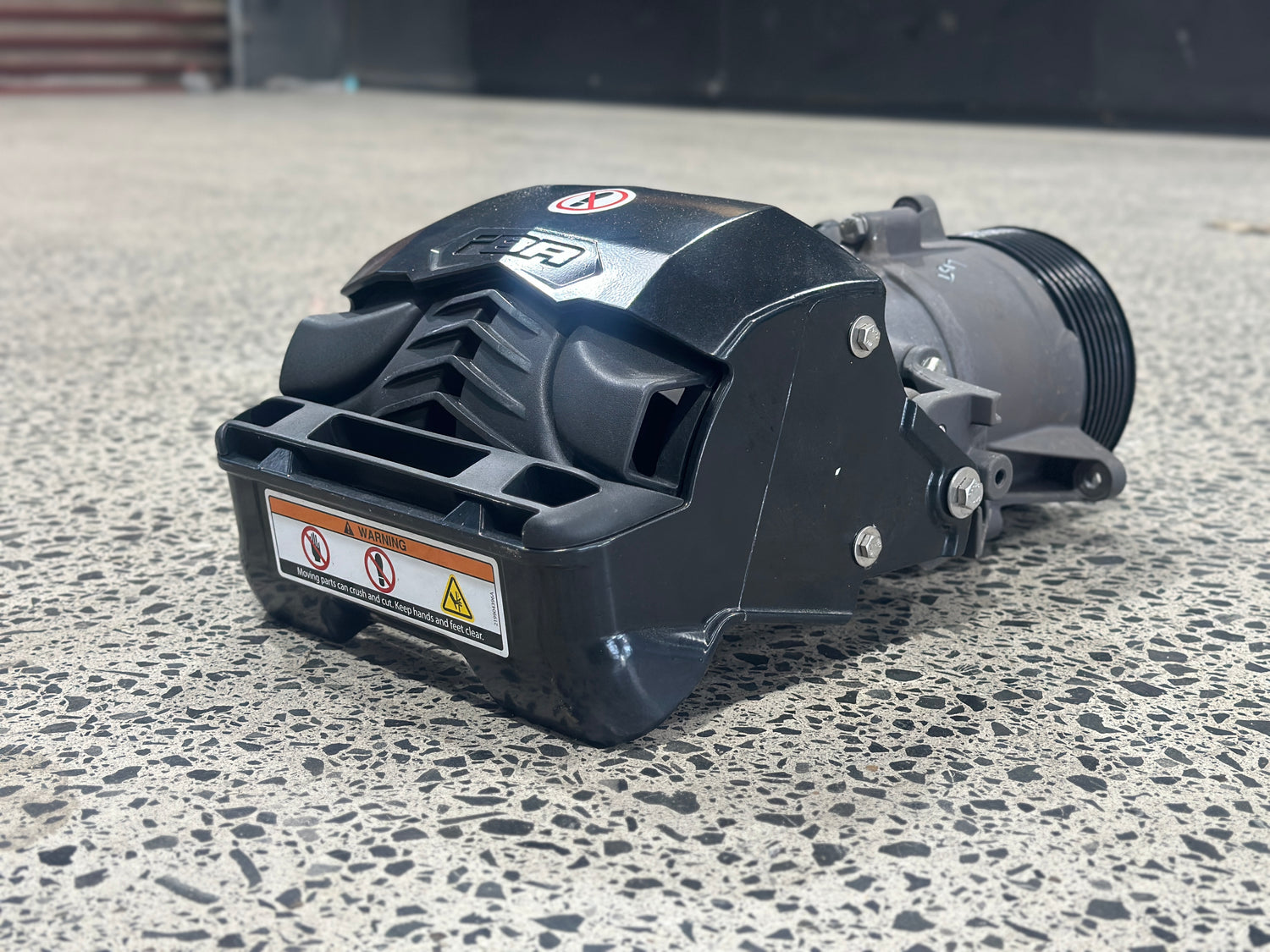

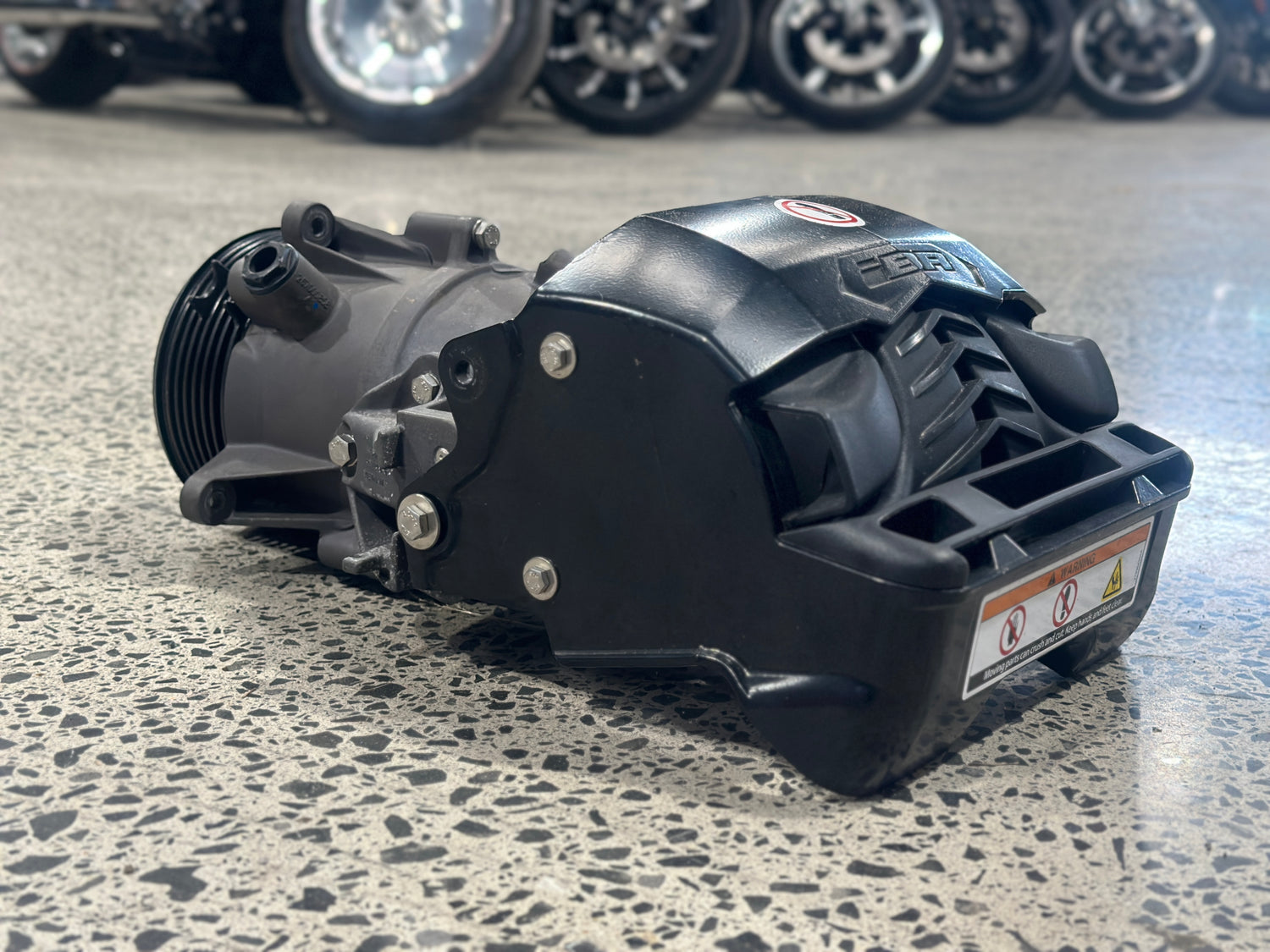

Sea-Doo - Spark Jet Pump Full Assy (Incl. Wear Ring, Impeller & IBR Bucket)

Details

Brand new OEM Jet Pump Full Assembly (Incl. Wear Ring, Impeller & IBR Bucket) to suit Spark 2UP, 3UP and TRIXX models.

Includes:

x1 295501255 - REVERSE GATE ASS'Y

x2 271001039 - SPACER

x2 234082600 - FLAT WASHER 8 MM, STAINLESS

x2 207382560 - HEX. SCREW M8 X 25, SCOTCH GRIP

x1 268000166 - RH REVERSE SUPPORT

x1 268000163 - LH REVERSE SUPPORT

x1 268000179 - TRIMMING RING

x2 268000141 - SOCKET HEAD SCREW M8 X 13

x2 293900007 - VENTURI BUSHING

x6 234080600 - FLAT WASHER M8, STAINLESS

x6 207382560 - HEX. SCREW M8 X 25, SCOTCH GRIP

x2 295501160 - ROLLER BUSHING KIT

x1 293200134 - NEOPRENE SEAL

x1 267001070 - IMPELLER ASSY

x1 293370038 - CIRCLIP

x1 293200089 - OIL SEAL

x2 271002071 - SEAL

x1 293300090 - O-RING

x1 267000925 - MACHINED WEAR RING

x1 267000282 - PLUG

x1 267000856 - PUMP HOUSING

x3 234080600 - FLAT WASHER M8, STAINLESS

x3 250000526 - HEX. SCREW M8 X 30, SCOTCH GRIP

x1 271002183 - BEARING_DOUBLE BALL

x1 250100104 - ELASTIC FLANGED NUT M20

x1 267000581 - IMPELLER SHAFT

x2 293300096 - O-RING

x1 267000769 - IMPELLER COVER

x3 234061600 - FLAT WASHER M6, STAINLESS

x3 205562560 - SOCKET HEAD SCREW M6 X 25, SCOTCH GRIP

x1 267000782 - SIPHON TUBE

x2 268000141 - SOCKET HEAD SCREW M8 X 13

x1 293900007 - VENTURI BUSHING

x1 293900010 - PLASTIC BUSHING

x3 234080600 - FLAT WASHER M8, STAINLESS

x3 250000526 - HEX. SCREW M8 X 30, SCOTCH GRIP

x1 267000909 - ANODIZED VENTURI

x1 267000705 - NOZZLE
